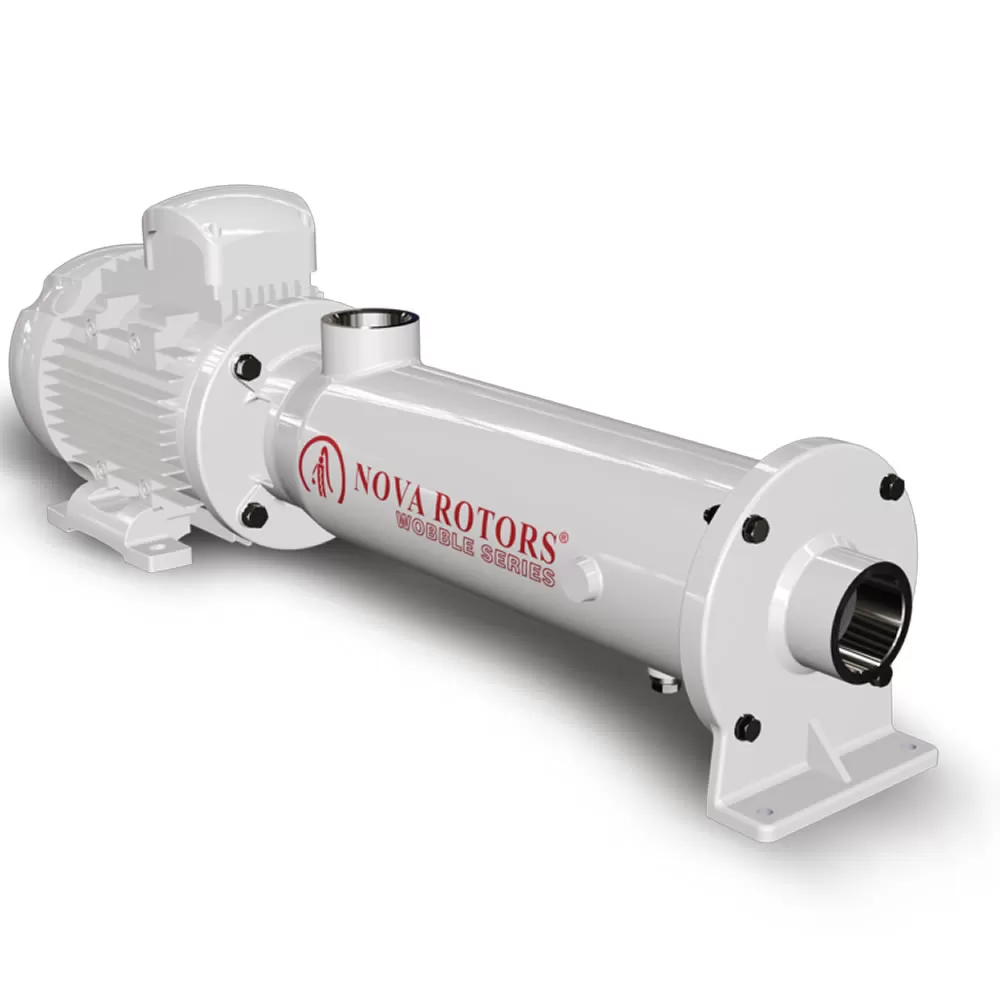

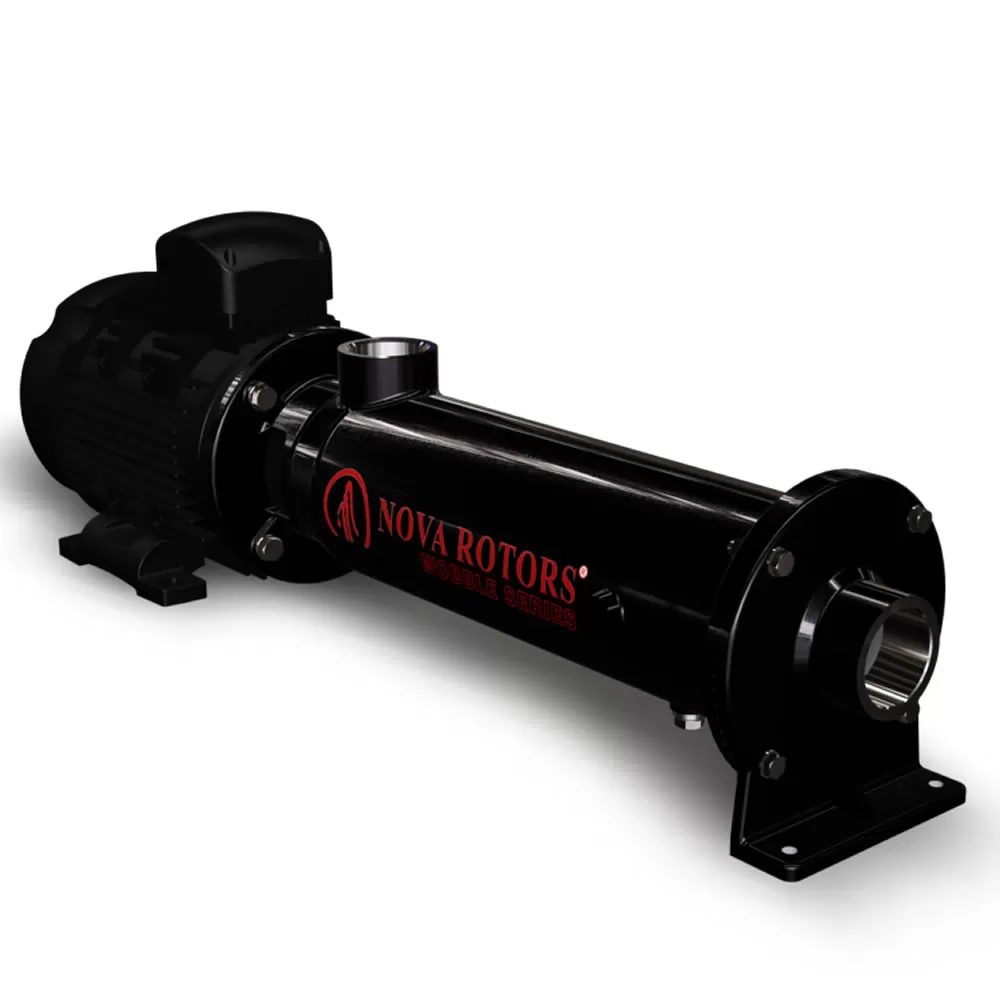

Industrial Wobble Pump

Our Industrial Wobble Pump is ideal for operators seeking a compact, versatile, and highly efficient pumping solution. Easy and economical to maintain owing to fewer components, they can be used in various industrial applications as they excel at handling viscous fluids, mildly abrasive fluids as well as those containing solids. As these pumps have no dead spaces, they can also be used in the Food industry. Additionally, these pumps deliver superior performance without pulsations, even at higher RPMs.

Typical applications for our Industrial Wobble Pump:

Sewage Sludge
Water Treatment
Industrial Sludge
Detergents & Chemicals
Pulp & Paper
Agriculture
Petrochemical
Maritime

Brochure

Overview Features & Benefits Specifications Variations

We have 3 models available for this pump, the RL, RJL and RFL, each offering the following benefits:

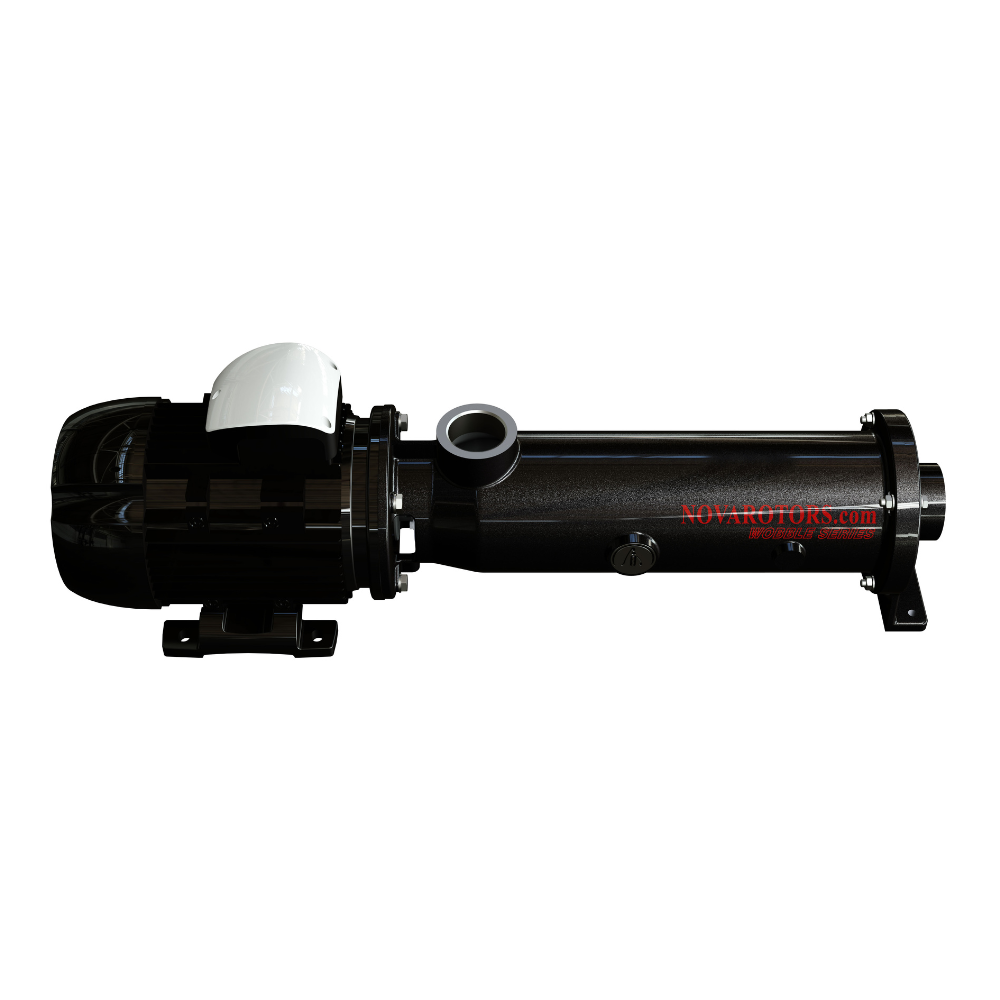

RL:

Integrated construction
Uses patented pin-type joint
Lantern-free construction
Solidly constructed housing in Cast Iron and Stainless Steel (AISI 304 and 316)

RJL:

Based on the same technology as the RL model
Features support bearings with a free bare shaft
Connects via a flexible coupling

RFL:

Based on the same technology as the RL model
Uses support bearings with a plug-in shaft at the inlet
Directly connected to the drive via a flange

Overview

We have 3 models available for this pump, the RL, RJL and RFL, each offering the following benefits:

RL:

Integrated construction
Uses patented pin-type joint
Lantern-free construction
Solidly constructed housing in Cast Iron and Stainless Steel (AISI 304 and 316)

RJL:

Based on the same technology as the RL model
Features support bearings with a free bare shaft
Connects via a flexible coupling

RFL:

Based on the same technology as the RL model
Uses support bearings with a plug-in shaft at the inlet
Directly connected to the drive via a flange

Features & Benefits

Excellent priming abilities, up to 4m, due to its hydraulic features
Pin-type joint for durability
Unique construction splits axial loads and torques
Bushings in wear areas reduce replacement costs for rotors, drive shafts, and hollow shafts
Low pulsations and tensional stress due to low operating speed
Internal single mechanical seals for maximum heat exchange
Customised stands, skids, and trolleys enhance mobility (can be installed without a stand on request)
Endurance-tested electrical or hydraulic motors

Specifications

Max Capacity	14.4m³/hr
Max Pressure	40m
Max Temperature	-40°C up to 80°C
Casing Material	GG25, CF8 (AISI Type 304), CF8M (AISI Type 316)
Sealing Shaft Material	AISI Type 304, AISI Type 316
Rotor Material	AISI Type 304, AISI Type 316
Stator Material	NBR, food-grade NBR, EPDM, food-grade EPDM, FPM, food-grade FPM

Variations

Base Plates: Standard base, base with hygienic, anti-vibration adjustable feet, trolley for use in the Food industry

Connections: Threaded HAS BSP connections, DIN 11851

Sealing Systems: Single mechanical seal

Protection & Control Accessories: Flow switch, pressure switch, sanitary pressure relief valve, pressure relief valve with threaded GAS BSP connections. Control panel, control panel with inverter, motor with integrated inverter

Options & Fittings: By-pass with threaded connections, protective drive casing
