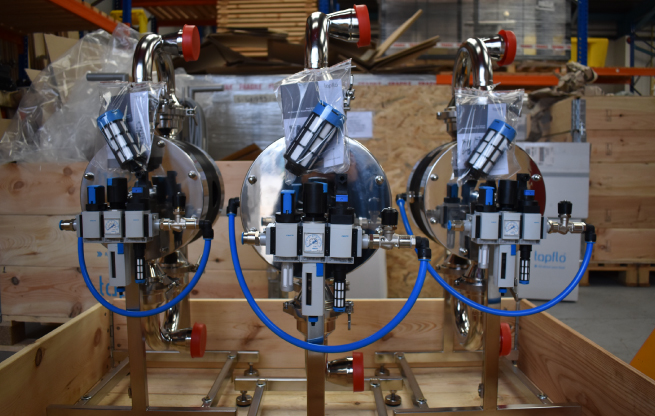

Aseptic EHEDG Diaphragm Pump

Our Aseptic Diaphragm Pump is cleanability tested, meaning bacteria does not grow in the pump after cleaning and draining. Units can also be delivered with backup diaphragm systems. There are no hidden areas where bacteria can grow. The manifold clamps and the housing screws are simply removed for complete disassembly and cleaning.

When used in conjunction with Tapflo’s patented control and monitoring equipment, preventive and routine maintenance is also easily integrated into any process whilst enabling accurate and precise control of the pump’s performance, optimising your system to the best of its ability!

Thanks to Tapflo’s innovative, simple & ingenious design, these pumps are compact, robust & reliable. Furthermore, they are quick & easy to maintain, keeping your service costs and process downtime to an absolute minimum.

Models are supplied with an extra-fine surface finish to Ra 0.8 as standard and Ra 0.5 upon request.
The pumps are supplied as standard with ISO Tri-Clamp connections; however, they may also be equipped with almost any type of connection used in the hygienic field – DIN clamps, SMS milk, RJT, and DIN aseptic to mention a few.

Available ATEX Rated, including in the TZ ATEX Pump series, which covers Zone 0 for environments where flammable materials are continuously present.

• No risk of bacterial growth
• Housing constructed from Stainless Steel AISI 316L, electropolished to Ra<0.8 as standard or Ra< 0.5 on request
• Designed for CIP/SIP, allowing for easy cleaning and drainage
• No risk of damage to sensitive media
• Wide range of connection types available including Tri-Clamp, Sanitary Threads (DIN, SMS) etc.
• No rotating shaft seals
• Self-priming, with flexible installation options
• Can dry run without damage
• Lubrication-free air valve
• Hygienic diaphragms, designed without nuts or plates

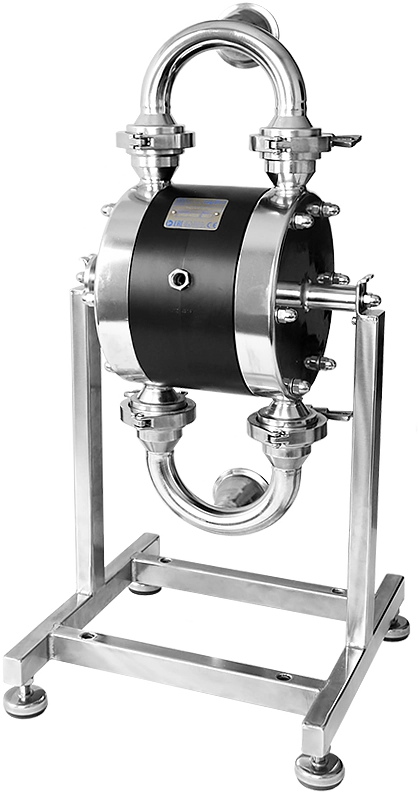

Our Aseptic EHEDG Air-Operated Double Diaphragm Pumps have a wide range of capacities to suit almost any application, from metering and dosing to general transfer. The max capacity range varies from 94 – 330 l/min with discharge pressures up to 8 Bar as standard & solids passage up to 10mm.
