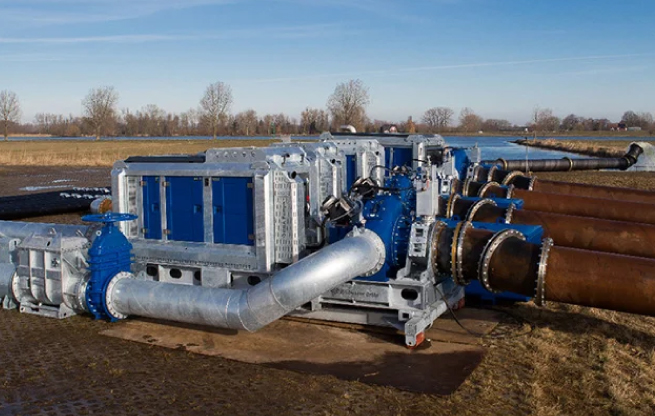

On-Site Image

BA600G D743 Dewatering Pump

BA600G D743 ultra high flow Diesel

BA600G D743 ultra high flow Diesel 2

Diesel

On-Site Image

Brochure

BA600G D743 Dewatering Pump

Automated ATEX Trolley Batching System

Case Study / 2022

Surface Treatment Sector

Case Study / 2020

Anaerobic Digestion Plant

Case Study / 2020

BA600G D743 Dewatering Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

Our BA600G D743 Dewatering Pump is an ultra-high-flow diesel-driven dewatering pump, designed to handle extremely large volumes of dirty water with solids up to 135 mm. Designed for applications where high flow rates are crucial, this 24-inch Centrifugal Pump offers superior performance and efficiency. The state-of-the-art sound-attenuated canopy ensures user safety and convenience, featuring practical elements like exterior lighting and a multi-language dashboard with automatic level control.

Large-Scale Dewatering Projects
Land Reclamation
Emergency Flood Control
Industrial Drainage

Brochure

Overview Features & Benefits Specifications

The BA600G D743 Dewatering Pump features a powerful 24-inch Centrifugal Pump equipped with a mixed flow impeller, capable of handling large solids and delivering exceptional flow rates. The pump’s high efficiency and low operating costs make it ideal for large-scale projects where discharge head is less critical. Its advanced priming system and Volvo Penta diesel engine ensure reliable operation in demanding conditions. The innovative sound-attenuated canopy includes features that enhance usability and mobility, making it a robust solution for various high-flow applications.

Feature	Details
Discharge x Suction	24″ x 28″
Max. Flow	6500 m³/h
Max. Head	22 mwc
Free Passage	135 mm
Priming System	MP100 (100 m³/h)
Engine	Volvo Penta
Max. Speed	620 rpm
Fuel Consumption at BEP	70 l/h
Canopy	EL23-58
Sound Level	75 dB at 10 m
Dimensions (L x W x H)	5830 x 2306 x 2300 mm
Dry Weight	11000 kg
Warranty	4 years

Overview

Features & Benefits

Ultra High Flow Capacity: Pumps up to 6500 m³/h, ideal for extensive dewatering and drainage tasks
Large Solids Handling: 135 mm free passage allows for effective handling of large debris
High Efficiency: Provides optimal pump performance with minimal operating costs
Advanced Priming System: MP100 system for quick priming and re-priming, even from dry conditions
User-Friendly Canopy: Features exterior lighting, lifting points, forklift pockets, and a multi-language dashboard for enhanced usability and safety

Specifications

Feature	Details
Discharge x Suction	24″ x 28″
Max. Flow	6500 m³/h
Max. Head	22 mwc
Free Passage	135 mm
Priming System	MP100 (100 m³/h)
Engine	Volvo Penta
Max. Speed	620 rpm
Fuel Consumption at BEP	70 l/h
Canopy	EL23-58
Sound Level	75 dB at 10 m
Dimensions (L x W x H)	5830 x 2306 x 2300 mm
Dry Weight	11000 kg
Warranty	4 years
