BA400G D500 High-Flow Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

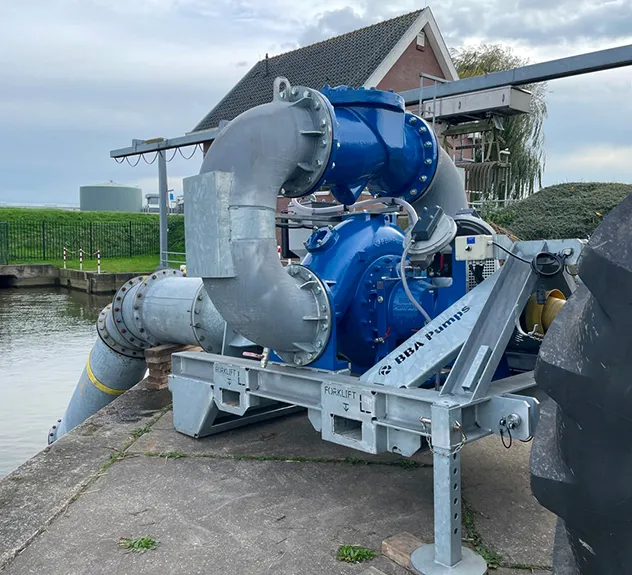

Our BA400G D500 High-Flow Pump is a high-capacity 16-inch PTO-driven pump designed for efficient and reliable dirty water pumping. Perfect for emergency scenarios, this pump leverages the power take-off (PTO) of a tractor, making it a versatile and space-efficient solution. Ideal for temporary high-flow applications, the BA400G D500 ensures rapid deployment and operation with minimal storage requirements.

Brochure

Overview Features & Benefits Specifications

The BA400G D500 High-Flow Pump is a robust and pump driven by the PTO of a tractor, offering an efficient alternative for temporary or emergency pumping needs. The pump features a vacuum system for quick and easy priming without the need to pre-fill the pump housing. With a high flow rate and large solids handling capacity, it is designed to deliver optimal performance in challenging conditions.

Feature	Details
Discharge x Suction	3x 12″ IT x 20″
Max. Flow	3000 m³/h
Max. Head	23 mwc
Free Passage	100 mm
Priming System	MP100 (100 m³/h)
Required PTO Power	125 kW
Max. Speed	1000 rpm
Frame	3 point suspension frame
Dimensions (L x W x H)	2538 x 2506 x 2100 mm
Dry Weight	3500 kg
Warranty	4 years

Overview

Features & Benefits

High Flow Capacity: Pumps up to 3000 m³/h, ideal for demanding applications
Large Solids Handling: Equipped with a 100 mm free passage impeller to handle substantial debris
PTO Driven: Utilises a readily available tractor PTO for operation, minimising the need for dedicated power sources
Efficient Priming System: MP100 system allows for quick priming and re-priming, even from dry conditions
Compact and Portable: Designed to be stored compactly and easily transported with a tractor

Specifications

Feature	Details
Discharge x Suction	3x 12″ IT x 20″
Max. Flow	3000 m³/h
Max. Head	23 mwc
Free Passage	100 mm
Priming System	MP100 (100 m³/h)
Required PTO Power	125 kW
Max. Speed	1000 rpm
Frame	3 point suspension frame
Dimensions (L x W x H)	2538 x 2506 x 2100 mm
Dry Weight	3500 kg
Warranty	4 years
