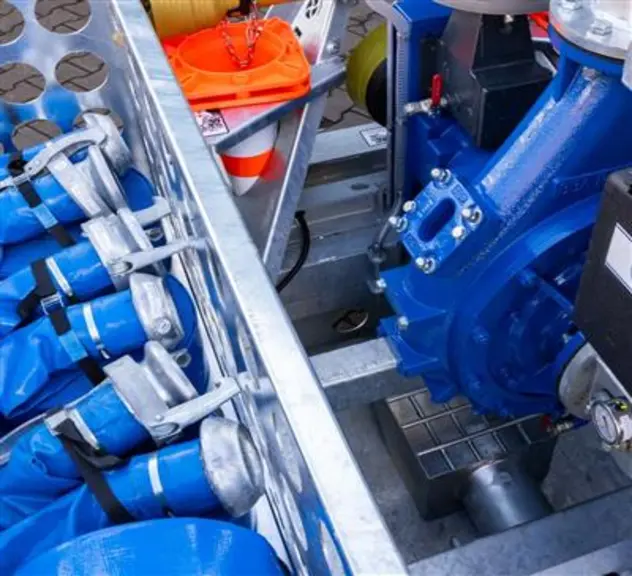

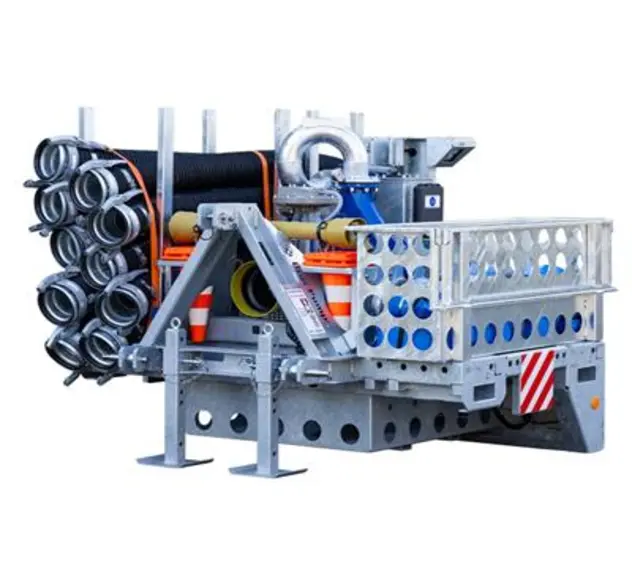

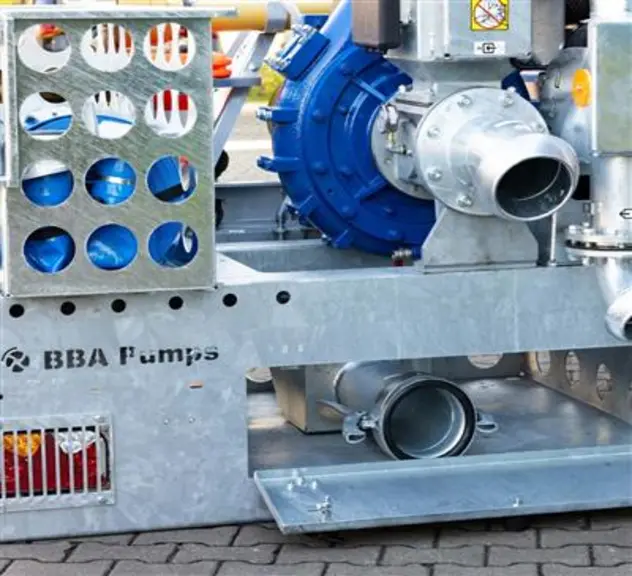

BA220L-D510-Tractor-Driven-Pump-with-Storage-System
BA220L-D510 Tractor Driven Pump with Storage System
BA220L-D510-Tractor-Driven-Pump
BA220L-D510 Tractor Driven Pump
BA220L-D510-Tractor-Driven-Pump-with-Storage-System
BA220L-D510 Tractor Driven Pump with Storage System
BA220L-D510-Tractor-Driven-Pump
BA220L-D510 Tractor Driven Pump
BA220L-D510-Tractor-Driven-Pump
BA220L-D510 Tractor Driven Pump
BA220L-D510-Tractor-Driven-Pumpset-with-Storage
BA220L-D510 Tractor Driven Pumpset with Storage
BA220L-D510-Tractor-Driven-Pump-with-Storage-System
BA220L-D510 Tractor Driven Pump with Storage System
BA220L-D510 Tractor Driven Pump with Storage System
BA220L-D510
BA220L-D510 Tractor Driven Pump
BA220L-D510
BA220L-D510 Tractor Driven Pump with Storage System
PTO
BA220L-D510 Tractor Driven Pump
Storage System
BA220L-D510 Tractor Driven Pump
BA220L-D510
BA220L-D510 Tractor Driven Pumpset with Storage
Tractor Driven
BA220L-D510 Tractor Driven Pump with Storage System
Storage System

BA220L D510 High-Flow Pump

Tapflo UK is proud to be the exclusive UK Partner of BBA Pumps, a leading Dutch manufacturer of the highest-quality, best-in-class Diesel-Driven Sets and Self-Priming Centrifugal Pumps.

Our BA220L D510 High-Flow Pump is a 12-inch PTO-Driven Pump that delivers high flow rates for large-scale water transfer and emergency operations. Its robust design ensures reliable performance in demanding conditions.

  • Emergency flood response
  • Large-scale dewatering tasks
  • Dirty water transfer
Brochure
Overview

The BA220L D510 combines high efficiency with ease of deployment, thanks to its hot dip galvanised tractor frame and automatic priming system. It’s designed for quick action and long-term reliability in demanding applications such as large-scale dewatering and emergency response scenarios.

Features & Benefits
  • Exceptional Performance: Max flow of 1020 m³/h with a head of 38 mwc
  • Tractor Compatibility: Operates with 100 kW PTO power
  • Durable Frame: Corrosion-resistant with safety cones and working lights
  • Environmentally Safe: Fully bunded to prevent spills
Specifications
Discharge x Suction 12″ x 12″
Max. Flow 1020 m³/h
Max. Head 38 mwc
Free Passage 80mm
Dimensions 2182 x 1122 x 1936 mm
Dry Weight 1950 kg
Required PTO Power 100 kW
Variations
  • Hose racks for suction and layflat hoses
